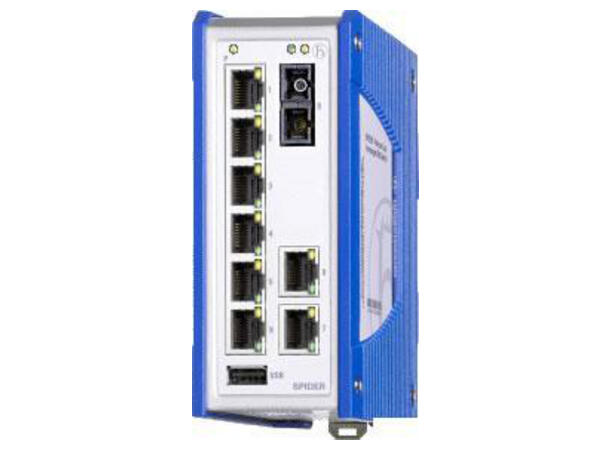

Hirschmann SPR20-8TX/1FM-EEC
Hirschmann SPR20-8TX/1FM-EEC
Unmanaged Switch
Varunummer:
942335028
Alt. varenr:
SPR20-8TX/1FM-EEC
4 992,98
7 681,50
Ordinær pris
Beskrivning
Dokumentasjon
Product description
Description
Unmanaged, Industrial ETHERNET Rail Switch, fanless design, store and forward switching mode, USB interface for configuration , Fast Ethernet , Fast Ethernet
Port type and quantity
8 x 10/100BASE-TX, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity 10/100BASE-TX, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity , 1 x 100BASE-FX, MM cable, SC sockets
More Interfaces
Power supply/signaling contact
1 x plug-in terminal block, 6-pin
USB interface
1 x USB for configuration
Network size - length of cable
Twisted pair (TP)
0 - 100 m
Multimode fiber (MM) 50/125 µm
0 - 5000 m (Link Budget at 1310 nm = 0 - 8 dB; A=1 dB/km; BLP = 800 MHz*km)
Multimode fiber (MM) 62.5/125 µm
0 - 4000 m (Link Budget at 1300 nm = 0 - 11 db; A = 1 dB/km; BLP = 500 MHz*km)
Network size - cascadibility
Line - / star topology
any
Power requirements
Current consumption at 24 V DC
Max. 200 mA
Operating Voltage
12/24 V DC (9.6 - 32 V DC), redundant
Power consumption
Max. 5.0 W
Power output in BTU (IT)/h
16.9
Diagnostics features
Diagnostic functions
LEDs (power, link status, data, data rate)
Software
Switching
Jumbo Frames QoS / Port Prioritization (802.1D/p) Ingress Storm Protection
Ambient conditions
MTBF
954.743 h (Telcordia)
Operating temperature
-40-+65 °C
Storage/transport temperature
-40-+85 °C
Relative humidity (non-condensing)
10 - 95 %
Mechanical construction
Dimensions (WxHxD)
56 x 135 x 117 mm (w/o terminal block)
Weight
510 g
Mounting
DIN rail
Protection class
IP40 metal housing
Mechanical stability
IEC 60068-2-6 vibration
3.5 mm, 5–8.4 Hz, 10 cycles, 1 octave/min 1 g, 8.4–150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock
15 g, 11 ms duration, 18 shocks
EMC emitted immunity
EN 55022
EN 55032 Class A
FCC CFR47 Part 15
FCC 47CFR Part 15, Class A
Approvals
Basis Standard
CE, FCC, EN61131
Safety of industrial control equipment
cUL 61010-1/61010-2-201
Reliability
Guarantee
60 months (please refer to the terms of guarantee for detailed information)
Scope of delivery and accessories
Accessories
Rail Power Supply RPS 30/80 EEC/120 EEC (CC), Wall mounting plate for DIN rail mounting (width 40/70 mm)
Scope of delivery
Device, terminal block, safety instruction
Further Instructions
Product Documentation
https://www.doc.hirschmann.com/index.html
Certificates
https://www.doc.hirschmann.com/certificates.html
Produsent
Support
SPR20-8TX1FM-EEC_techdata.pdf
