Product
description
|
|
|
Description |

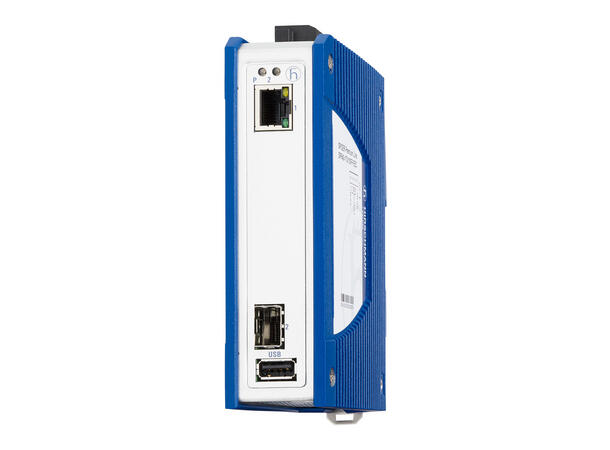

Unmanaged,
Industrial ETHERNET Rail Switch, fanless design, store and forward switching
mode, USB interface for configuration , Full Gigabit Ethernet |
|
Port type and quantity |
1
x 10/100/1000BASE-T, TP cable, RJ45 sockets, auto-crossing, auto-negotiation,
auto-polarity , 1 x 100/1000MBit/s SFP |
|
More
Interfaces
|
|
|
Power supply/signaling contact |
1
x plug-in terminal block, 6-pin |
|
Network
size - length of cable
|
|
|
Twisted pair (TP) |
0
- 100 m |
|
Single mode fiber (SM) 9/125 µm |
0
- 20 km, 0 - 11 dB Link Budget (with M-SFP-LX/LC) |
|
Multimode fiber (MM) 50/125 µm |
0
- 550m, 0 - 7,5 dB link budget (with M-SFP-SX/LC) |
|
Multimode fiber (MM) 62.5/125 µm |
0
- 275 m, 0 - 7,5 dB Link Budget at 850 nm (with M-SFP-SX/LC) |
|
Network
size - cascadibility
|
|
|
Line - / star topology |
any |
|
Power
requirements
|
|
|
Current consumption at 24 V DC |
Max.
170 mA |
|
Operating Voltage |
12/24
V DC (9.6 - 32 V DC), redundant |
|
Power consumption |
Max.
4.0 W |
|
Power output in BTU (IT)/h |
13.aug |
|
Diagnostics
features
|
|
|
Diagnostic functions |
LEDs
(power, link status, data, data rate) |
|
Software
|
|
|
Switching |
Jumbo
Frames QoS / Port Prioritization (802.1D/p) Ingress Storm Protection |
|
Ambient
conditions
|
|
|
MTBF |
1.530.211
h (Telcordia) |
|
Relative humidity (non-condensing) |
10
- 95 % |
|
Mechanical
construction
|
|
|
Dimensions (WxHxD) |
39
x 135 x 117 mm (w/o terminal block) |
|
Weight |
400
g |
|
Mounting |
DIN
rail |
|
Protection class |
IP40
metal housing |
|
Mechanical
stability
|
|
|
IEC 60068-2-6 vibration |
3.5
mm, 5–8.4 Hz, 10 cycles, 1 octave/min 1 g, 8.4–150 Hz, 10 cycles, 1
octave/min |
|
IEC 60068-2-27 shock |
15
g, 11 ms duration, 18 shocks |
|
EMC
emitted immunity
|
|
|
EN 55022 |
EN
55032 Class A |
|
FCC CFR47 Part 15 |
FCC
47CFR Part 15, Class A |
|
Approvals
|
|
|
Basis Standard |
CE,
FCC, EN61131 |
|
Safety of industrial control equipment |
cUL
61010-1/61010-2-201 |
|
Reliability
|
|
|
Guarantee |
60
months (please refer to the terms of guarantee for detailed information) |
|
Scope
of delivery and accessories
|
|
|
Accessories |
Rail
Power Supply RPS 30/80 EEC/120 EEC (CC), Wall mounting plate for DIN rail
mounting (width 40/70 mm) |
|
Scope of delivery |
Device,
terminal block, safety instruction
|
