Product
description
|
|
|
|

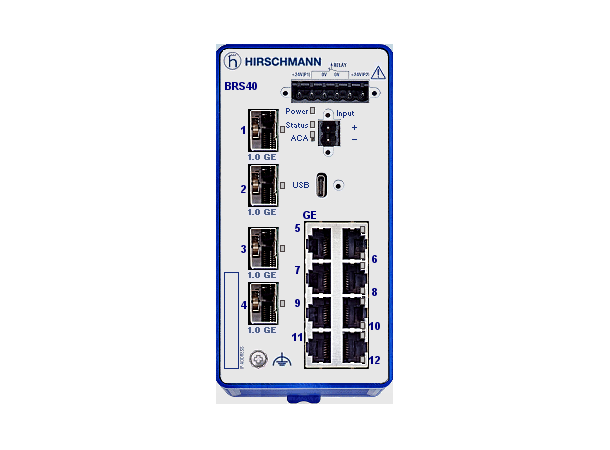

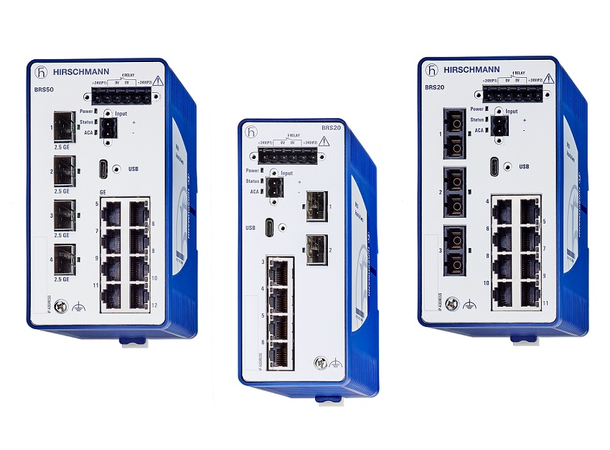

Managed Industrial Switch for DIN
Rail, fanless design All Gigabit type , MacSec capable (features with future
SW Release available) |
|
|
HiOS10.0.00 |
|
|
12 Ports in
total: 8x 10/100/1000BASE TX / RJ45, 4x 100/1000Mbit/s fiber ; 1. Uplink: 2 x
SFP Slot (100/1000 Mbit/s) ; 2. Uplink: 2 x SFP Slot (100/1000 Mbit/s) |
|
|
|
Power supply/signaling contact |
1 x plug-in
terminal block, 6-pin |
|
|
1 x plug-in
terminal block, 2-pin |
Local Management and Device Replacement |
USB-C |
Network
size - length of cable
|
|
|
|
0 - 100 m |
Single mode fiber (SM) 9/125 µm |
see SFP fiber
modules see SFP fiber modules |
Single mode fiber (LH) 9/125 µm (long haul transceiver) |
see SFP fiber
modules see SFP fiber modules |
Multimode fiber (MM) 50/125 µm |
see SFP fiber
modules see SFP fiber modules |
Multimode fiber (MM) 62.5/125 µm |
see SFP fiber
modules see SFP fiber modules |
Network
size - cascadibility
|
|
|
|
any |
|
|
|
|
|
2 x 24 VDC
... 48 VDC and 24 VAC |
|
|
14 W |
Power output in BTU (IT)/h |
48 |
|
|
|
|
|
Independent
VLAN Learning, Fast Aging, Static Unicast/Multicast Address Entries, QoS /
Port Prioritization (802.1D/p), TOS/DSCP Prioritization, Interface Trust
Mode, CoS Queue Management, Queue-Shaping / Max. Queue Bandwidth, Flow
Control (802.3X), Egress Interface Shaping, Ingress Storm Protection, Jumbo
Frames, VLAN (802.1Q), GARP VLAN Registration Protocol (GVRP), Voice VLAN,
GARP Multicast Registration Protocol (GMRP), IGMP Snooping/Querier per VLAN
(v1/v2/v3), Unknown Multicast Filtering, Multiple VLAN Registration Protocol
(MVRP), Multiple MAC Registration Protocol (MMRP), Multiple Registration
Protocol (MRP) |
|
|
HIPER-Ring
(Ring Switch), Link Aggregation with LACP, Link Backup, Media Redundancy
Protocol (MRP) (IEC62439-2), Redundant Network Coupling, RSTP 802.1D-2004
(IEC62439-1), RSTP Guards , Sub Ring Manager |
|
|
Dual Software
Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, HTTP, HTTPS,
Traps, SNMP v1/v2/v3, Telnet, IPv6 Management , DNS Client , OPC UA Server |
|
|
Management
Address Conflict Detection, MAC Notification, Signal Contact, Device Status
Indication, TCPDump, LEDs, Syslog, Persistent Logging on ACA, Port Monitoring
with Auto-Disable, Link Flap Detection, Overload Detection, Duplex Mismatch
Detection, Link Speed and Duplex Monitoring, RMON (1,2,3,9), Port Mirroring
1:1, Port Mirroring 8:1, Port Mirroring N:1, Port Mirroring N:2, System
Information, Self-Tests on Cold Start, Copper Cable Test, SFP Management,
Configuration Check Dialog, Switch Dump , Email Notification |
|
|
Automatic
Configuration Undo (roll-back), Configuration Fingerprint, Text-based
Configuration File (XML), Backup config on a remote server when saving, Clear
config but keep IP settings, BOOTP/DHCP Client with Auto-Configuration, DHCP
Server: per Port, DHCP Server: Pools per VLAN, AutoConfiguration Adapter
ACA21/22 (USB), HiDiscovery, USB-C Management support, Command Line Interface
(CLI), CLI Scripting, CLI script handling over ENVM at boot, Full-featured
MIB Support, Context-sensitive Help, HTML5 based Management |
|
|
ISASecure CSA
/ IEC 62443-4-2 certified, MAC-based Port Security, Port-based Access Control
with 802.1X, Guest/unauthenticated VLAN, Integrated Authentication Server
(IAS), RADIUS VLAN Assignment, Denial-of-Service Prevention, DoS Prevention
Drop Counter, VLAN-based ACL, Ingress VLAN-based ACL, Basic ACL, Access to
Management restricted by VLAN, Device Security Indication, Audit Trail, CLI
Logging, HTTPS Certificate Management, Restricted Management Access,
Appropriate Use Banner, Configurable Password Policy, Configurable Number of
Login Attempts, SNMP Logging, Multiple Privilege Levels, Local User
Management, Remote Authentication via RADIUS, User Account Locking, Password
change on first login , RADIUS Policy Assignment, Multi-Client Authentication
per Port, MAC Authentication Bypass, Format options for MAC authentication
bypass, LDAP |
|
|
PTPv2
Transparent Clock two-step, PTPv2 Boundary Clock, BC with Up to 8 Sync / s ,
802.1AS, Buffered Real Time Clock, SNTP Client, SNTP Server |
|
|
EtherNet/IP
Protocol, IEC61850 Protocol (MMS Server, Switch Model), Modbus TCP, PROFINET
Protocol |
|
|
Digital IO
Management, Manual Cable Crossing, Port Power Down |
|
|
|
|
|
0-+50 |
Storage/transport temperature |
-40-+70 °C |
Relative humidity (non-condensing) |
1- 95 % |
|
|
|
|
|
87 mm x 140
mm x 115 mm |
|
|
1250 g |
|
|
Metal |
|
|
DIN Rail |
|
|
IP40 |
|
|
|
|
|
5 Hz ... 8,4
Hz with 3,5 mm amplitude; 2 Hz ... 13,2 Hz with 1 mm amplitude; 8,4 Hz ...
200 Hz with 1 g; 13,2 Hz ... 100 Hz with 0,7 g |
|
|
15 g, 11 ms
duration |
EMC
interference immunity
|
|
EN 61000-4-2 electrostatic discharge (ESD) |
6 kV contact
discharge, 8 kV air discharge |
EN 61000-4-3 electromagnetic field |
10 V/m
(80-2000 MHz); 5 V/m (2000-2700 MHz); 3 V/m (5100-6000 MHz) |
EN 61000-4-4 fast transients (burst) |
2 kV power
line, 2 kV data line |
EN 61000-4-5 surge voltage |
power line: 2
kV (line/earth) and 1 kV (line/line); data line: 2 kV |
EN 61000-4-6 Conducted Immunity |
10 V (150
kHz-80 MHz) |
|
|
|
|
|
EN 55032
Class A |
|
|
FCC 47CFR
Part 15, Class A |
|
|
|
|
|
CE, FCC,
EN61131, EN62368-1 |
|
|
IEC 61850 |
|
|
|
|
|
60 months
(please refer to the terms of guarantee for detailed information) |
Scope
of delivery and accessories
|
|
|
|
AutoConfiguration
Adapter ACA22-USB-C (EEC) 942239001; 6-pin terminal block with screw lock (50
pieces) 943 845-013; 2-pin terminal block with screw lock (50 pieces) 943
845-009; Industrial HiVision Network Management Software 943 156-xxx |
|
|
1 × Device, 1
× Safety and general information sheet, 1 × Terminal block for supply voltage
and signal contact, 1 × Terminal block for the digital input depending on
device variant, 2 × Ferrites with key depending on device variant
|
