Product
description
|
|
|
Description |

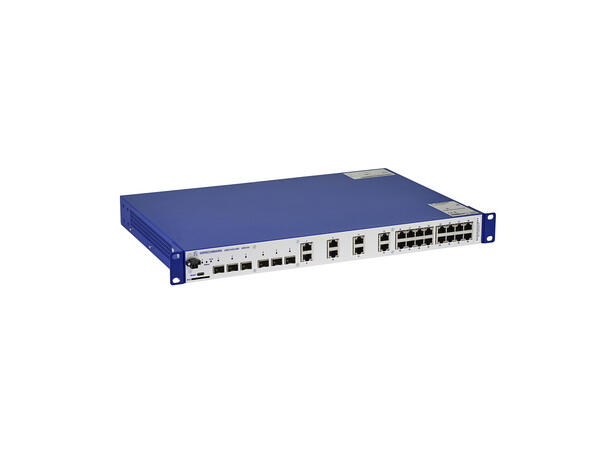

GREYHOUND
105/106 Series, Managed Industrial Switch, fanless design, 19" rack
mount, according to IEEE 802.3, 6x1/2.5GE +8xGE +16xGE |
|
Software Version |
HiOS
10.0 |
|
Port type and quantity |
30
Ports in total, 6x GE/2.5GE SFP slot + 8x FE/GE TX ports + 16x FE/GE TX ports |
|
More
Interfaces
|
|
|
Power supply/signaling contact |
Power
supply input 1: IEC plug, Signal contact: 2 pin plug-in terminal block ,
Power supply input 2: IEC plug |
|
SD-card slot |
1
x SD card slot to connect the auto configuration adapter ACA31 |
|
USB-C |
1
x USB-C (client) for local management |
|
Network
size - length of cable
|
|
|
Twisted pair (TP) |
0-100
m |
|
Single mode fiber (SM) 9/125 µm |
see
SFP modules |
|
Single mode fiber (LH) 9/125 µm (long haul transceiver) |
see
SFP modules |
|
Multimode fiber (MM) 50/125 µm |
see
SFP modules |
|
Multimode fiber (MM) 62.5/125 µm |
see
SFP modules |
|
Network
size - cascadibility
|
|
|
Line - / star topology |
any |
|
Power
requirements
|
|
|
Operating Voltage |
Power
supply input 1: 110 - 240 VAC, 50 Hz - 60 Hz , Power supply input 2: 110 -
240 VAC, 50 Hz - 60 Hz |
|
Power consumption |
Basic
unit with one power supply max. 35W |
|
Power output in BTU (IT)/h |
max.
120 |
|
Software
|
|
|
Switching |
Independent
VLAN Learning, Fast Aging, Static Unicast/Multicast Address Entries, QoS /
Port Prioritization (802.1D/p), TOS/DSCP Prioritization, Interface Trust
Mode, CoS Queue Management, IP Ingress DiffServ Classification and Policing,
IP Egress DiffServ Classification and Policing, Queue-Shaping / Max. Queue
Bandwidth, Flow Control (802.3X), Egress Interface Shaping, Ingress Storm
Protection, Jumbo Frames, VLAN (802.1Q), Protocol-based VLAN, VLAN Unaware
Mode, GARP VLAN Registration Protocol (GVRP), Double VLAN Tagging (QinQ),
Voice VLAN, MAC-based VLAN, IP subnet-based VLAN, GARP Multicast Registration
Protocol (GMRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Unknown Multicast
Filtering, Forward unknown multicast to query ports, Multiple VLAN Registration
Protocol (MVRP), Multiple MAC Registration Protocol (MMRP), Multiple
Registration Protocol (MRP), |
|
Redundancy |
HIPER-Ring
(Ring Switch), HIPER-Ring over Link Aggregation, Link Aggregation with LACP,
Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2), MRP over Link
Aggregation, Redundant Network Coupling, Sub Ring Manager, RSTP 802.1D-2004
(IEC62439-1), MSTP (802.1Q), RSTP Guards, |
|
Management |
DNS
Client, Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB),
LLDP-MED, SSHv2, OPC-UA Server, HTTP, HTTPS, IPv6 Management, Service
Discovery (bonjour), ITxPT Module Inventory, Traps, SNMPv1/v2 Read-Only, SNMP
v1/v2/v3, SNMPv3 Traps, Telnet |
|
Diagnostics |
Management
Address Conflict Detection, MAC Notification, Loop Protection, Signal
Contact, Device Status Indication, TCPDump, LEDs, Syslog, Persistent Logging
on ACA, Email Notification, Port Monitoring with Auto-Disable, Link Flap
Detection, Overload Detection, Duplex Mismatch Detection, Link Speed and
Duplex Monitoring, RMON (1,2,3,9), Port Mirroring 1:1, Port Mirroring 8:1,
Port Mirroring N:1, RSPAN, SFLOW, VLAN Mirroring, System Information,
Self-Tests on Cold Start, Copper Cable Test, SFP Management, Configuration
Check Dialog, Switch Dump, |
|
Configuration |
Automatic
Configuration Undo (roll-back), Configuration Fingerprint, XML-based
Configuration File, Backup config on a remote server when saving, Clear
config but keep IP settings, BOOTP/DHCP Client with Auto-Configuration, DHCP
Server: per Port, DHCP Server: Pools per VLAN, AutoConfiguration Adapter
ACA31 (SD card), HiDiscovery, DHCP Relay with Option 82, Auto Disable, USB-C
Management support, Command Line Interface (CLI), CLI Scripting, CLI script
handling over ENVM at boot, Full-featured MIB Support, Context-sensitive
Help, HTML5 based Management, Interface Shutdown via Tracking |
|
Security |
Signed
Firmware Images, MAC-based Port Security, Port-based Access Control with
802.1X, Guest/unauthenticated VLAN, Integrated Authentication Server (IAS),
RADIUS VLAN Assignment, RADIUS Policy Assignment, Multi-Client Authentication
per Port, MAC Authentication Bypass, Format options for MAC authentication
bypass, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection,
Denial-of-Service Prevention, RADIUS Client, LDAP, Ingress MAC-based ACL,
Egress MAC-based ACL, Ingress IPv4-based ACL, Egress IPv4-based ACL,
Time-based ACL, VLAN-based ACL, Ingress VLAN-based ACL, Egress VLAN-based
ACL, ACL Flow-based Limiting, Access to Management restricted by VLAN, Device
Security Indication, Audit Trail, Secure Boot, CLI Logging, HTTPS Certificate
Management, Restricted Management Access, Appropriate Use Banner,
Configurable Password Policy, Configurable Number of Login Attempts, SNMP
Logging, Multiple Privilege Levels, Local User Management, Remote
Authentication via RADIUS, User Account Locking, Password change on first
login |
|
Time synchronisation |
PTPv2
Transparent Clock two-step, PTPv2 Boundary Clock, BC with Up to 8 Sync / s ,
802.1AS, 802.1AS-2020, Buffered Real Time Clock, SNTP Client, SNTP Server |
|
Industrial Profiles |
EtherNet/IP
Protocol, Modbus TCP, PROFINET Protocol |
|
Miscellaneous |
Manual
Cable Crossing, Port Power Down |
|
Ambient
conditions
|
|
|
MTBF (Telecordia SR-332 Issue 3) @ 25°C |
837 450 |
|
Operating temperature |
-70 |
|
Storage/transport temperature |
-20
- +70 °C |
|
Relative humidity (non-condensing) |
5-90
% |
|
Mechanical
construction
|
|
|
Dimensions (WxHxD) |
444
x 44 x 355 mm |
|
Weight |
5
kg estimated |
|
Mounting |
Rack
mount |
|
Protection class |
IP30 |
|
Mechanical
stability
|
|
|
IEC 60068-2-6 vibration |
3.5
mm, 5 Hz – 8.4 Hz, 10 cycles, 1 octave/min.; 1 g, 8.4 Hz-200 Hz, 10 cycles, 1
octave/min |
|
IEC 60068-2-27 shock |
15
g, 11 ms duration, 18 shocks |
|
EMC
interference immunity
|
|
|
EN 61000-4-2 electrostatic discharge (ESD) |
6
kV contact discharge, 8 kV air discharge |
|
EN 61000-4-3 electromagnetic field |
20
V/m (800-1000 MHz), 10V/m (80-800 MHz ; 1000-6000 MHz); 1 kHz, 80% AM |
|
EN 61000-4-4 fast transients (burst) |
2
kV power line, 4 kV data line STP, 2 kV data line UTP |
|
EN 61000-4-5 surge voltage |
power
line: 2 kV (line/earth) and 1 kV (line/line); data line: 2 kV |
|
EN 61000-4-6 Conducted Immunity |
10
V (150 kHz - 80 MHz) |
|
EMC
emitted immunity
|
|
|
EN 55032 |
EN
55032 Class A |
|
Approvals
|
|
|
Basis Standard |
CE,
FCC, EN61131 |
|
Safety of information technology equipment |
EN62368 |
|
Reliability
|
|
|
Guarantee |
60
months (please refer to the terms of guarantee for detailed information) |
|
Scope
of delivery and accessories
|
|
|
Accessories to Order Separately |
Network
Management Industrial HiVision, ACA31, SFP/SFP+ |
|
Scope of delivery |
Device,
General safety instructions
|
