| Product description |
|
|
Type: |

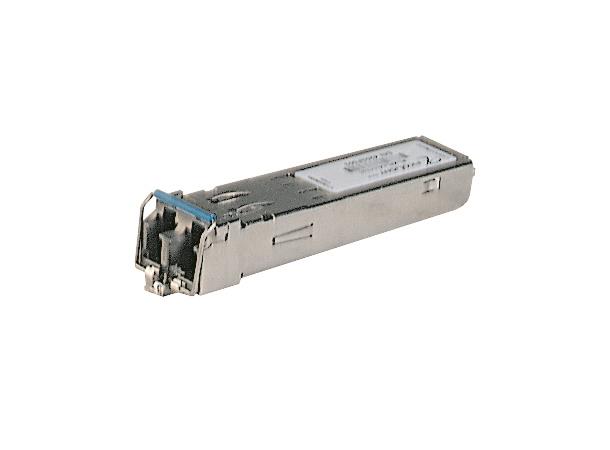

SFP-FAST-MM/LC |
|
Description: |
SFP
Fiberoptic Fast-Ethernet Transceiver MM |
|
Part Number: |
942194001 |
|
Port type and quantity: |
1
x 100 Mbit/s with LC connector |
|
Network
size - length of cable |
|
|
Multimode fiber (MM) 50/125 µm: |
0
- 5000 m 0 - 8 dB link budget at 1310 nm A = 1 dB/km, 3 dB Reserve, B = 800
MHz x km |
|
Multimode fiber (MM) 62.5/125 µm: |
0
- 4000 m 0 - 11 dB link budget at 1310 nm A = 1 dB/km, 3 dB Reserve, B = 500
MHz*km |
|
Power
requirements |
|
|
Operating Voltage: |
power
supply via the switch |
|
Power consumption: |
1
W |
|
Software |
|
|
Diagnostics: |
Optical
input and output power, transceiver temperature |
|
Ambient
conditions |
|
|
Operating temperature: |
0-+60
°C |
|
Storage/transport temperature: |
-40-+85
°C |
|
Relative humidity (non-condensing): |
5-95 % |
|
Mechanical
construction |
|
|
Dimensions (WxHxD): |
13.4
mm x 8.5 mm x 56.5 mm |
|
Weight: |
40
g |
|
Mounting: |
SFP
slot |
|
Protection class: |
IP20 |
|
Mechanical
stability |
|
|
IEC 60068-2-6 vibration: |
1
mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz,
10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min |
|
IEC 60068-2-27 shock: |
15
g, 11 ms duration, 18 shocks |
|
EMC
interference immunity |
|
|
EN 61000-4-2 electrostatic discharge (ESD): |
6
kV contact discharge, 8 kV air discharge |
|
EN 61000-4-3 electromagnetic field: |
10
V/m (80-1000 MHz) |
|
EN 61000-4-4 fast transients (burst): |
2
kV power line, 1 kV data line |
|
EN 61000-4-5 surge voltage: |
power
line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line |
|
EN 61000-4-6 Conducted Immunity: |
3
V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz) |
|
EMC
emitted immunity |
|
|
EN 55022: |
EN
55022 Class A |
|
FCC CFR47 Part 15: |
FCC
47CFR Part 15, Class A |
|
Approvals |
|
|
Safety of information technology equipment: |
EN60950 |
|
Reliability |
|
|
Guarantee: |
24
months (please refer to the terms of guarantee for detailed information) |
|
Scope
of delivery and accessories |
|
|
Scope of delivery: |
SFP
module
|
