Product
description
|
|
|
|

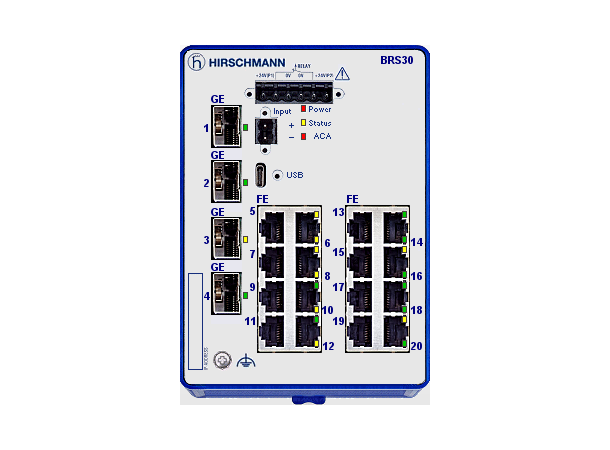

Managed Industrial Switch for DIN
Rail, fanless design Fast Ethernet, Gigabit uplink type |
|
|
HiOS10.0.00 |
|
|
20 Ports in total: 16x 10/100BASE TX
/ RJ45; 4x 100/1000Mbit/s fiber ; 1. Uplink: 2 x SFP Slot (100/1000 Mbit/s) ;
2. Uplink: 2 x SFP Slot (100/1000 Mbit/s) |
|
|
|
Power supply/signaling contact |
1 x plug-in terminal block, 6-pin |
|
|
1 x plug-in terminal block, 2-pin |
Local Management and Device Replacement |
USB-C |
Network
size - length of cable
|
|
|
|
0 - 100 m |
Single mode fiber (SM) 9/125 µm |
see SFP fiber modules see SFP fiber
modules |
Single mode fiber (LH) 9/125 µm (long haul transceiver) |
see SFP fiber modules see SFP fiber
modules |
Multimode fiber (MM) 50/125 µm |
see SFP fiber modules see SFP fiber
modules |
Multimode fiber (MM) 62.5/125 µm |
see SFP fiber modules see SFP fiber
modules |
Network
size - cascadibility
|
|
|
|
any |
|
|
|
|
|
2 x 12 VDC ... 24 VDC |
|
|
15 W |
Power output in BTU (IT)/h |
51 |
|
|
|
|
|
CoS Queue Management, Egress
Interface Shaping, Fast Aging, Flow Control (802.3X), GARP Multicast
Registration Protocol (GMRP), GARP VLAN Registration Protocol (GVRP), IGMP
Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress
Storm Protection, Interface Trust Mode, Jumbo Frames, Multiple MAC
Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple
VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p),
Queue-Shaping / Max. Queue Bandwidth, Static Unicast/Multicast Address
Entries, TOS/DSCP Prioritization, Unknown Multicast Filtering, VLAN (802.1Q),
Voice VLAN |
|
|
High Availability Seamless
Redundancy Protocol (HSR) (IEC62439-3), Link Aggregation with LACP, Link
Backup, MRP over Link Aggregation, MSTP (802.1Q), RSTP (Rapid Spanning Tree
Protocol), RSTP 802.1D-2004, RSTP Guards, Sub Ring Manager |
|
|
Dual Software Image Support, TFTP,
SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, HTTP, HTTPS, Traps, SNMP
v1/v2/v3, Telnet, IPv6 Management, , DNS Client, , OPC UA Server |
|
|
Management Address Conflict
Detection, MAC Notification, Signal Contact, Device Status Indication,
TCPDump, LEDs, Syslog, Persistent Logging on ACA, Port Monitoring with
Auto-Disable, Link Flap Detection, Overload Detection, Duplex Mismatch
Detection, Link Speed and Duplex Monitoring, RMON (1,2,3,9), Port Mirroring
1:1, Port Mirroring 8:1, Port Mirroring N:1, Port Mirroring N:2, System
Information, Self-Tests on Cold Start, Copper Cable Test, SFP Management,
Configuration Check Dialog, Switch Dump, , Email Notification |
|
|
Automatic Configuration Undo
(roll-back), Configuration Fingerprint, Text-based Configuration File (XML),
Backup config on a remote server when saving, Clear config but keep IP
settings, BOOTP/DHCP Client with Auto-Configuration, DHCP Server: per Port, DHCP
Server: Pools per VLAN, AutoConfiguration Adapter ACA21/22 (USB),
HiDiscovery, USB-C Management support, Command Line Interface (CLI), CLI
Scripting, CLI script handling over ENVM at boot, Full-featured MIB Support,
Context-sensitive Help, HTML5 based Management |
|
|
ISASecure CSA / IEC 62443-4-2
certified, MAC-based Port Security, Port-based Access Control with 802.1X,
Guest/unauthenticated VLAN, Integrated Authentication Server (IAS), RADIUS
VLAN Assignment, Denial-of-Service Prevention, DoS Prevention Drop Counter,
VLAN-based ACL, Ingress VLAN-based ACL, Basic ACL, Access to Management
restricted by VLAN, Device Security Indication, Audit Trail, CLI Logging,
HTTPS Certificate Management, Restricted Management Access, Appropriate Use
Banner, Configurable Password Policy, Configurable Number of Login Attempts,
SNMP Logging, Multiple Privilege Levels, Local User Management, Remote
Authentication via RADIUS, User Account Locking, Password change on first
login, , RADIUS Policy Assignment, Multi-Client Authentication per Port, MAC
Authentication Bypass, Format options for MAC authentication bypass, LDAP |
|
|
PTPv2 Transparent Clock two-step,
PTPv2 Boundary Clock, BC with Up to 8 Sync / s , 802.1AS, Buffered Real Time
Clock, SNTP Client, SNTP Server |
|
|
EtherNet/IP Protocol, IEC61850
Protocol (MMS Server, Switch Model), Modbus TCP, PROFINET Protocol |
|
|
Digital IO Management, Manual Cable
Crossing, Port Power Down |
|
|
|
MTBF (Telecordia SR-332 Issue 3) @ 25°C |
2 972 379 h |
|
|
0-+60 |
Storage/transport temperature |
-40-+70 °C |
Relative humidity (non-condensing) |
1- 95 % |
|
|
Yes (conformal coating) |
|
|
|
|
|
109 mm x 138 mm x 115 mm |
|
|
950 g |
|
|
PC-ABS |
|
|
DIN Rail |
|
|
IP30 |
|
|
|
|
|
5 Hz ... 8,4 Hz with 3,5 mm
amplitude; 2 Hz ... 13,2 Hz with 1 mm amplitude; 8,4 Hz ... 200 Hz with 1 g;
13,2 Hz ... 100 Hz with 0,7 g |
|
|
15 g, 11 ms duration |
EMC
interference immunity
|
|
EN 61000-4-2 electrostatic discharge (ESD) |
6 kV contact discharge, 8 kV air
discharge |
EN 61000-4-3 electromagnetic field |
10 V/m (80-2000 MHz); 5 V/m
(2000-2700 MHz); 3 V/m (5100-6000 MHz) |
EN 61000-4-4 fast transients (burst) |
2 kV power line, 2 kV data line |
EN 61000-4-5 surge voltage |
power line: 2 kV (line/earth) and 1
kV (line/line); data line: 2 kV |
EN 61000-4-6 Conducted Immunity |
10 V (150 kHz-80 MHz) |
|
|
|
|
|
EN 55032 Class A |
|
|
FCC 47CFR Part 15, Class A |
|
|
|
|
|
CE, FCC, EN61131, EN62368-1 |
|
|
|
|
|
60 months (please refer to the terms
of guarantee for detailed information) |
Scope
of delivery and accessories
|
|
|
|
AutoConfiguration Adapter
ACA22-USB-C (EEC) 942239001; 6-pin terminal block with screw lock (50 pieces)
943 845-013; 2-pin terminal block with screw lock (50 pieces) 943 845-009;
Industrial HiVision Network Management Software 943 156-xxx |
|
|
1 × Device, 1 × Safety and general
information sheet, 1 × Terminal block for supply voltage and signal contact,
1 × Terminal block for the digital input depending on device variant, 2 ×
Ferrites with key depending on device variant
|
