Product
description
|
|
|
Description |
Managed

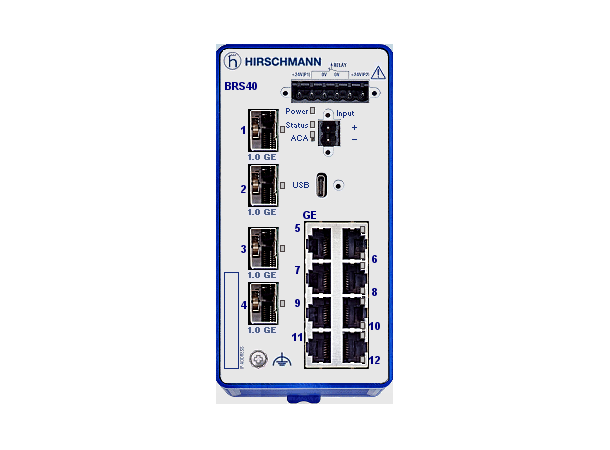

Industrial Switch for DIN Rail, fanless design All Gigabit type |
|
Software Version |
HiOS10.0.00 |
|
Port type and quantity |
12
Ports in total: 8x 10/100/1000BASE TX / RJ45, 4x 100/1000Mbit/s fiber ; 1.
Uplink: 2 x SFP Slot (100/1000 Mbit/s) ; 2. Uplink: 2 x SFP Slot (100/1000
Mbit/s) |
|
More
Interfaces
|
|
|
Power supply/signaling contact |
1
x plug-in terminal block, 6-pin |
|
Digital Input |
1
x plug-in terminal block, 2-pin |
|
Local Management and Device Replacement |
USB-C |
|
Network
size - length of cable
|
|
|
Twisted pair (TP) |
0
- 100 m |
|
Single mode fiber (SM) 9/125 µm |
see
SFP fiber modules see SFP fiber modules |
|
Single mode fiber (LH) 9/125 µm (long haul transceiver) |
see
SFP fiber modules see SFP fiber modules |
|
Multimode fiber (MM) 50/125 µm |
see
SFP fiber modules see SFP fiber modules |
|
Multimode fiber (MM) 62.5/125 µm |
see
SFP fiber modules see SFP fiber modules |
|
Network
size - cascadibility
|
|
|
Line - / star topology |
any |
|
Power
requirements
|
|
|
Operating Voltage |
2
x 12 VDC ... 24 VDC |
|
Power consumption |
11
W |
|
Power output in BTU (IT)/h |
38 |
|
Software
|
|
|
Switching |
Independent
VLAN Learning, Fast Aging, Static Unicast/Multicast Address Entries, QoS /
Port Prioritization (802.1D/p), TOS/DSCP Prioritization, Interface Trust
Mode, CoS Queue Management, Queue-Shaping / Max. Queue Bandwidth, Flow
Control (802.3X), Egress Interface Shaping, Ingress Storm Protection, Jumbo
Frames, VLAN (802.1Q), GARP VLAN Registration Protocol (GVRP), Voice VLAN,
GARP Multicast Registration Protocol (GMRP), IGMP Snooping/Querier per VLAN
(v1/v2/v3), Unknown Multicast Filtering, Multiple VLAN Registration Protocol
(MVRP), Multiple MAC Registration Protocol (MMRP), Multiple Registration
Protocol (MRP) |
|
Redundancy |
HIPER-Ring
(Ring Switch), Link Aggregation with LACP, Link Backup, Media Redundancy
Protocol (MRP) (IEC62439-2), Redundant Network Coupling, RSTP 802.1D-2004
(IEC62439-1), RSTP Guards |
|
Management |
Dual
Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2,
HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet, IPv6 Management |
|
Diagnostics |
Management
Address Conflict Detection, MAC Notification, Signal Contact, Device Status
Indication, TCPDump, LEDs, Syslog, Persistent Logging on ACA, Port Monitoring
with Auto-Disable, Link Flap Detection, Overload Detection, Duplex Mismatch
Detection, Link Speed and Duplex Monitoring, RMON (1,2,3,9), Port Mirroring
1:1, Port Mirroring 8:1, Port Mirroring N:1, Port Mirroring N:2, System
Information, Self-Tests on Cold Start, Copper Cable Test, SFP Management,
Configuration Check Dialog, Switch Dump |
|
Configuration |
Automatic
Configuration Undo (roll-back), Configuration Fingerprint, Text-based
Configuration File (XML), Backup config on a remote server when saving, Clear
config but keep IP settings, BOOTP/DHCP Client with Auto-Configuration, DHCP
Server: per Port, DHCP Server: Pools per VLAN, AutoConfiguration Adapter
ACA21/22 (USB), HiDiscovery, USB-C Management support, Command Line Interface
(CLI), CLI Scripting, CLI script handling over ENVM at boot, Full-featured
MIB Support, Context-sensitive Help, HTML5 based Management |
|
Security |
ISASecure
CSA / IEC 62443-4-2 certified, MAC-based Port Security, Port-based Access
Control with 802.1X, Guest/unauthenticated VLAN, Integrated Authentication
Server (IAS), RADIUS VLAN Assignment, Denial-of-Service Prevention, DoS
Prevention Drop Counter, VLAN-based ACL, Ingress VLAN-based ACL, Basic ACL,
Access to Management restricted by VLAN, Device Security Indication, Audit
Trail, CLI Logging, HTTPS Certificate Management, Restricted Management
Access, Appropriate Use Banner, Configurable Password Policy, Configurable
Number of Login Attempts, SNMP Logging, Multiple Privilege Levels, Local User
Management, Remote Authentication via RADIUS, User Account Locking, Password
change on first login |
|
Time synchronisation |
PTPv2
Transparent Clock two-step, PTPv2 Boundary Clock, BC with Up to 8 Sync / s ,
802.1AS, Buffered Real Time Clock, SNTP Client, SNTP Server |
|
Industrial Profiles |
EtherNet/IP
Protocol, IEC61850 Protocol (MMS Server, Switch Model), Modbus TCP, PROFINET
Protocol |
|
Miscellaneous |
Digital
IO Management, Manual Cable Crossing, Port Power Down |
|
Ambient
conditions
|
|
|
MTBF (Telecordia SR-332 Issue 3) @ 25°C |
3
119 057 h |
|
Operating temperature |
0-+60 |
|
Storage/transport temperature |
-40-+70
°C |
|
Relative humidity (non-condensing) |
1-
95 % |
|
Mechanical
construction
|
|
|
Dimensions (WxHxD) |
73
mm x 138 mm x 115 mm |
|
Weight |
570
g |
|
Housing |
PC-ABS |
|
Mounting |
DIN
Rail |
|
Protection class |
IP30 |
|
Mechanical
stability
|
|
|
IEC 60068-2-6 vibration |
5
Hz ... 8,4 Hz with 3,5 mm amplitude; 2 Hz ... 13,2 Hz with 1 mm amplitude;
8,4 Hz ... 200 Hz with 1 g; 13,2 Hz ... 100 Hz with 0,7 g |
|
IEC 60068-2-27 shock |
15
g, 11 ms duration |
|
EMC
interference immunity
|
|
|
EN 61000-4-2 electrostatic discharge (ESD) |
6
kV contact discharge, 8 kV air discharge |
|
EN 61000-4-3 electromagnetic field |
10
V/m (80-2000 MHz); 5 V/m (2000-2700 MHz); 3 V/m (5100-6000 MHz) |
|
EN 61000-4-4 fast transients (burst) |
2
kV power line, 2 kV data line |
|
EN 61000-4-5 surge voltage |
power
line: 2 kV (line/earth) and 1 kV (line/line); data line: 2 kV |
|
EN 61000-4-6 Conducted Immunity |
10
V (150 kHz-80 MHz) |
|
EMC
emitted immunity
|
|
|
EN 55022 |
EN
55032 Class A |
|
FCC CFR47 Part 15 |
FCC
47CFR Part 15, Class A |
|
Approvals
|
|
|
Basis Standard |
CE,
FCC, EN61131, EN62368-1 |
|
Shipbuilding |
DNV |
|
Reliability
|
|
|
Guarantee |
60
months (please refer to the terms of guarantee for detailed information) |
|
Scope
of delivery and accessories
|
|
|
Accessories |
AutoConfiguration
Adapter ACA22-USB-C (EEC) 942239001; 6-pin terminal block with screw lock (50
pieces) 943 845-013; 2-pin terminal block with screw lock (50 pieces) 943
845-009; Industrial HiVision Network Management Software 943 156-xxx |
|
Scope of delivery |
1
× Device, 1 × Safety and general information sheet, 1 × Terminal block for
supply voltage and signal contact, 1 × Terminal block for the digital input
depending on device variant, 2 × Ferrites with key depending on device
variant
|
