Product
description
|
|
|

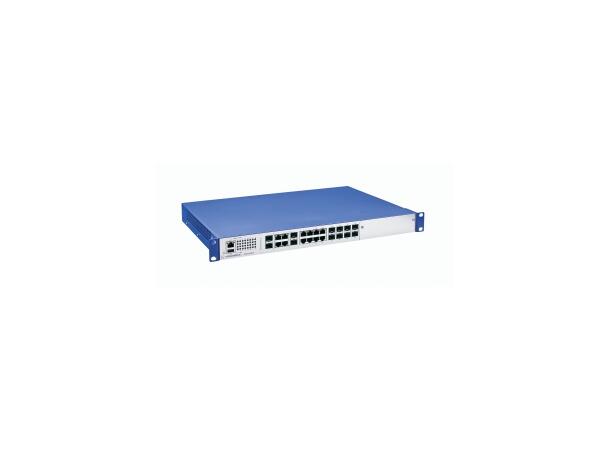

Description |
Industrial
managed Fast, Gigabit Ethernet Switch, 19" rack mount, fanless Design
according to IEEE 802.3, Store-and-Forward-Switching |
|
Software Version |
HiOS
07.1.08 |
|
Port type and quantity |
Ports
in total up to 28 x 4 Fast Ethernet, Gigabit Ethernet Combo ports; Basic
unit: 4 FE, GE and 16 FE ports, expandable with media module with 8 FE ports |
|
More
Interfaces
|
|
|
Power supply/signaling contact |
Power
Supply 1: power supply 3 pin plug-in terminal block, signal contact 2 pin
plug-in terminal block ; Power Supply 2: power supply 3 pin plug-in terminal
block |
|
V.24 interface |
1
x RJ45 socket |
|
USB interface |
1
x USB to connect auto-configuration adapter ACA21-USB |
|
Network
size - length of cable
|
|
|
Twisted pair (TP) |
0-100
m |
|
Single mode fiber (SM) 9/125 µm |
see
SFP modules |
|
Single mode fiber (LH) 9/125 µm (long haul transceiver) |
see
SFP modules |
|
Multimode fiber (MM) 50/125 µm |
see
SFP modules |
|
Multimode fiber (MM) 62.5/125 µm |
see
SFP modules |
|
Network
size - cascadibility
|
|
|
Line - / star topology |
any |
|
Power
requirements
|
|
|
Operating Voltage |
Power
Supply 1: 110 - 250 VDC (88 V - 288 VDC) and 110 - 240 VAC (88 V - 276 VAC)
Power Supply 2: 110 - 250 VDC (88 V - 288 VDC) and 110 - 240 VAC (88 V - 276
VAC) |
|
Power consumption |
19
W |
|
Power output in BTU (IT)/h |
65 |
|
Software
|
|
|
Switching |
Independent
VLAN Learning, Fast Aging, Static Unicast, Multicast Address Entries, QoS ,
Port Prioritization (802.1D, p), TOS, DSCP Prioritization, Interface Trust
Mode, CoS Queue Management, Flow Control (802.3X), Egress Interface Shaping,
Ingress Storm Protection, VLAN (802.1Q), VLAN Unaware Mode, Voice VLAN, IGMP
Snooping, Querier per VLAN (v1, v2, v3), Unknown Multicast Filtering,
Multiple VLAN Registration Protocol (MVRP), Multiple MAC Registration
Protocol (MMRP), Multiple Registration Protocol (MRP), GARP VLAN Registration
Protocol (GVRP), GMRP |
|
Redundancy |
Link
Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP)
(IEC62439-2), Sub Ring Manager, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards |
|
Management |
Dual
Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2,
V.24, HTTP, HTTPS, Traps, SNMP v1, v2, v3, Telnet |
|
Diagnostics |
Management
Address Conflict Detection, MAC Notification, Signal Contact, Device Status
Indication, TCPDump, LEDs, Syslog, Persistent Logging on ACA, Port Monitoring
with Auto-Disable, Link Flap Detection, Overload Detection, Duplex Mismatch
Detection, Link Speed and Duplex Monitoring, RMON (1,2,3,9), Port Mirroring
1:1, Port Mirroring 8:1, Port Mirroring N:1, Port Mirroring N:2, System
Information, Self-Tests on Cold Start, Copper Cable Test, SFP Management,
Configuration Check Dialog, Switch Dump, Snapshot Configuration Feature |
|
Configuration |
Automatic
Configuration Undo (roll-back), Configuration Fingerprint, Text-based
Configuration File (XML), Backup config on a remote server when saving, Clear
config but keep IP settings, BOOTP/DHCP Client with Auto-Configuration, DHCP
Server: per Port, DHCP Server: Pools per VLAN, AutoConfiguration Adapter
ACA21/22 (USB), HiDiscovery, DHCP Relay with Option 82, Command Line
Interface (CLI), CLI Scripting, CLI script handling over ENVM at boot,
Full-featured MIB Support, Web-based Management, Context-sensitive Help,
HTML5 based Management |
|
Security |
MAC-based
Port Security, Port-based Access Control with 802.1X, Guest/unauthenticated
VLAN, Integrated Authentication Server (IAS), RADIUS VLAN Assignment,
Denial-of-Service Prevention, VLAN-based ACL, Ingress VLAN-based ACL, Basic
ACL, Access to Management restricted by VLAN, Device Security Indication,
Audit Trail, CLI Logging, HTTPS Certificate Management, Restricted Management
Access, Appropriate Use Banner, Configurable Password Policy, Configurable
Number of Login Attempts, SNMP Logging, Multiple Privilege Levels, Local User
Management, Remote Authentication via RADIUS, User Account Locking, Password
change on first login |
|
Time synchronisation |
Buffered
Real Time Clock, SNTP Client, SNTP Server |
|
Industrial Profiles |
IEC61850
Protocol (MMS Server, Switch Model), ModbusTCP |
|
Miscellaneous |
Manual
Cable Crossing, Port Power Down |
|
Ambient
conditions
|
|
|
Operating temperature |
0-+60
°C |
|
Storage/transport temperature |
-40-+70
°C |
|
Relative humidity (non-condensing) |
5-95
% |
|
Mechanical
construction
|
|
|
Dimensions (WxHxD) |
448
mm x 44 mm x 315 mm |
|
Weight |
4.01
kg |
|
Mounting |
Rack
mount |
|
Protection class |
IP30 |
|
Mechanical
stability
|
|
|
IEC 60068-2-6 vibration |
1
mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz,
10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min |
|
IEC 60068-2-27 shock |
15
g, 11 ms duration, 18 shocks |
|
EMC
interference immunity
|
|
|
EN 61000-4-2 electrostatic discharge (ESD) |
8
kV contact discharge, 15 kV air discharge |
|
EN 61000-4-3 electromagnetic field |
35
V/m (80-2700 MHz); 1 kHz, 80% AM |
|
EN 61000-4-4 fast transients (burst) |
4
kV power line, 4 kV data line |
|
EN 61000-4-5 surge voltage |
power
line: 2 kV (line/earth), 1 kV (line/line); data line: 1 kV; IEEE1613: power
line 5kV (line/earth) |
|
EN 61000-4-6 Conducted Immunity |
3
V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz) |
|
EN 61000-4-16 mains frequency voltage |
30
V, 50 Hz continous; 300 V, 50 Hz 1 s |
|
EMC
emitted immunity
|
|
|
EN 55022 |
EN
55032 Class A |
|
FCC CFR47 Part 15 |
FCC
47CFR Part 15, Class A |
|
Approvals
|
|
|
Basis Standard |
CE,
FCC, EN61131 |
|
Safety of industrial control equipment |
EN60950,
cUL60950 |
|
Shipbuilding |
DNV |
|
Substation |
IEC61850,
IEEE1613 |
|
Reliability
|
|
|
Guarantee |
60
months (please refer to the terms of guarantee for detailed information) |
|
Scope
of delivery and accessories
|
|
|
Accessories to Order Separately |
GRM
- GREYHOUND Media Module, Terminal Cable, Network Management Industrial
HiVision, ACA22, SFP |
|
Scope of delivery |
Device,
terminal blocks , General safety instructions
|
